#6 Inventory & Item System (Chained by Eternity)

Hey There!
Thanks for taking the time to read my devlog.
I would really appreciate any kind of feedback - whether it’s about the project, my programming, or even my writing style - it really helps! And if you just feel like chatting about game development or want to connect, feel free to reach out. You can find my contact info here

This devlog covers the development of my project, Chained by Eternity .

Inventory

I implemented a grid-based, jigsaw-style inventory system, inspired by classics like Diablo II. The core of this system is a custom UObject class called UInventoryManager, stored in the player’s PlayerState.

The InventoryManager is responsible for all inventory logic, including:

• Adding and removing items
• Finding free space in the grid
• Equipping and unequipping gear
• Managing equipped items
• Validating item requirements

The items are stored inside a two dimensional array representing the grid while the equippments are stored inside a map:

TArray<TArray<UItem*>> InventoryGrid;
TMap<EEquipmentSlots, TObjectPtr<UEquipmentItem>> EquippedItems;

All of this logic is cleanly seperated from the UI, as I’m following a strict separation of concerns between gameplay logic and presentation. Communication between systems is handled via a custom event manager. The InventoryManager emits and responds to relevant UI events, keeping gameplay code decoupled.

Item Structure

Items are represented as UObjects and store their data in a FItemData FStruct. Using UObjects rather than plain structs gives the ability to work with pointers, which simplifies management - for example, an empty inventory slot simply points to nullptr.

The item classes follow a hierarchical inheritance pattern like this:

• UItem is the base class for all items and is the type the inventory system operates on.
• UEquipment inherits from UItem, adding functionality for equipping and unequipping.
• UWeapon inherits from UEquipment, and adds weapon-specific behavior like granting abilities and changing animation layers when equipped.

The same inheritance pattern applies to the data structs:

• FItemData contains data common to all items, such as icon, size in the inventory grid, and general properties.
• FEquipmentData inherits from FItemData, adding data related to attribute modifiers and requirements for equippable items
• UWeapon inherits from FEquipmentData, extending it with weapon-specific data like the mesh, granted abilities, and animation montages.

Each data struct is made compatible with a DataTable by inheriting from FTableRowBase, allowing me to create separate databases for each item type to keep things organized.

I’m not yet sure if this is the most elegant approach, but after experimenting with several different setups, this one has proven to be both functional and relatively clean so far.

Linking the UWeapon item to the actual weapon AActor I created during the last devlog worked without any issues. The same goes for implementing a ItemPickUpActor class, which holds a UItem instance, visually represents it in the world, and allows it to be picked up by the player.

So for now, I’m happy with how the system is coming together. If it turns out to be problematic later on, I’ll learn from the mistakes I made for the future.

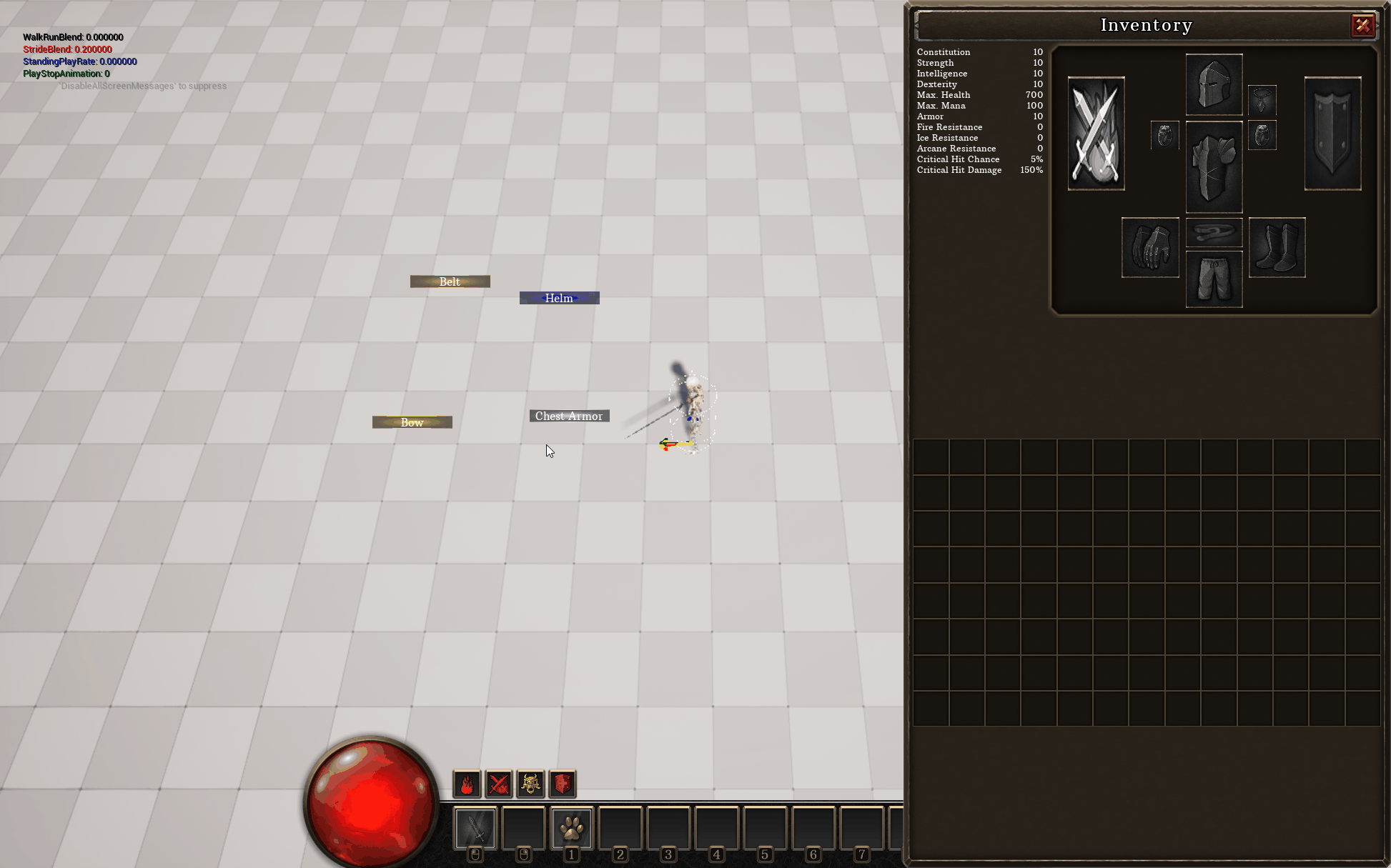

Down below, you can see the inventory system in action. The item in the inventory is directly linked to the weapon actor the player is holding. Equipping a different weapon not only swaps the mesh but also dynamically changes the animation layer the player uses.

I’ve implemented an animation layer system similar to what’s shown in Unreal’s Lyra sample project. Since that system is already well-documented by many others, I won’t cover it in a separate devlog.

Equipment Modifiers

If you noticed in the (admittedly low-quality) GIF above, equipping the weapon also updates the attributes shown in the left panel of the inventory.
That’s because equipment applies a GameplayEffect to the player when equipped. This GameplayEffect is created and applied at runtime.

The actual modifier properties come from a separate DataTable. When a new equipment item drops, one or more modifiers are randomly selected from this table and assigned to the item’s FEquipmentData, defining its stats.

USTRUCT(BlueprintType)
struct FEquipmentModifiers : public FTableRowBase
{
	GENERATED_BODY()

	UPROPERTY(EditAnywhere, Category = "Modifier Settings", meta = (Tooltip = "Select infinite for basic equipments"))
	EGameplayEffectDurationType ModifierDuration;

	UPROPERTY(EditAnywhere, Category = "Modifier Settings")
	FGameplayAttribute EffectedAttribute;

	UPROPERTY(EditAnywhere, Category = "Modifier Settings", meta = (Tooltip = "How should the attribute be effected by the value."))
	TEnumAsByte<EGameplayModOp::Type> ModifierOperation;

	UPROPERTY(EditAnywhere, Category = "Modifier Settings")
	FGameplayEffectModifierMagnitude ModifierValue;

	UPROPERTY(EditAnywhere, Category = "UI Representation")
	EValueRepresentationType ValueRepresentationType;

	FEquipmentModifiers()
		: ModifierDuration(EGameplayEffectDurationType::Infinite), ModifierOperation(EGameplayModOp::Additive), ModifierValue(FScalableFloat(0.f))
	{
	}
};

Doing it this way lays the foundation for a more advanced and dynamic item drop system in the future—one where rarer items can have more modifiers, or where certain modifiers are weighted to appear less frequently, making them more powerful and valuable.

I wanted to kept the modifiers separate from the item itself to maintain a modular and flexible system.

Future Plans

Later on, I plan to implement a Consumable item type that stores a reference to a GameplayAbility, which can be activated when the item is used. This approach would allow me to support items like health or mana potions, but also open the door for more creative mechanics—like throwable bombs, temporary buff potions, or teleport scrolls.
That said, I’ll wait and see what actually makes sense from a game design perspective before going too wild with ideas.
